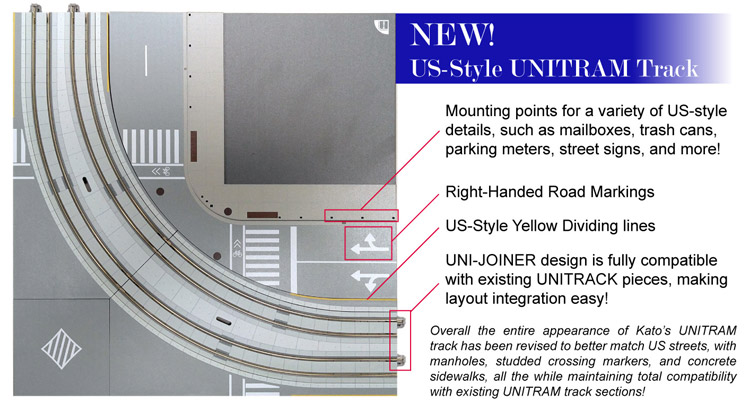

UNITRACK moves into the city, with Dio-town compatible street plates and embedded road track perfect for trams and streetcars.

Long desired by modelers looking to create urban and city type environments in which to operate their trains (be it for inner city trams or to replicate heavier weight train lines that allow freight and commuter lines to run through city centers), UNITRAM offers a versatile street track system that integrates with the included road places to create the illusion of a proper city environment.

Using both standard Unijoiners and variable track spacing on both straights (25mm) and in curves (33mm - standard double track width), it is possible to connect UNITRAM street tracks to both Kato UNITRACK single or Concrete-tie double tracks, allowing easy integration into existing layouts.

The track itself combines with street plates that use DIO-TOWN type connectors (Seen left, click for a larger image), allowing them to connect to other available street plates in the Kato UNITRACK product line. Use of these plates is optional for those modelers who wish to use their own scenery and cityscapes with Kato UNITRAM track.

The Basic starting Oval set can be used both independently as a compact city within your layout (the central area is designed to fit a number of Kato Dio-town buildings, or can be linked to a double track or multiple single track UNITRACK layouts thanks to the connection methods mentioned above. Additionally, other sets of UNITRAM pieces can be used to create larger and more elaborate street track setups.

UNITRAM is available both individually as well in a variety of packaged sets with Left-handed (Japanese style) street printing. Some Japanese-styled items may need to be special ordered through your local hobby shop. All of the information that you need can be found below, and you can contact your local hobby store to confirm availability.

Looking for English instructions? Download the English language instruction manual for the V60 and UNITRAM track system HERE.

	UNITRAM Core Set
Photo (Click to enlarge)	Item #	Description	MSRP
	40-810	V60 UNITRAM North American Style Oval Track Set Includes: UNITRAM Track Plates - 2 x Straight (124mm) and 8 x Curved (R180mm) UNITRAM Road Plates - 2 x Center Plate with intersection, 4 x Curved Road Plates for curves UNITRAM Accessory kit - includes tram stop kit, catenary pole set, sidewalk details, streetlights and traffic signals, track feeders, tram rerailer, tram joiners and Dio-town plate joiners Sticker sheet for road signs English language instruction manual	$230.00

	UNITRAM Boxed Sets
Photo (Click to enlarge)	Item #	Description	MSRP

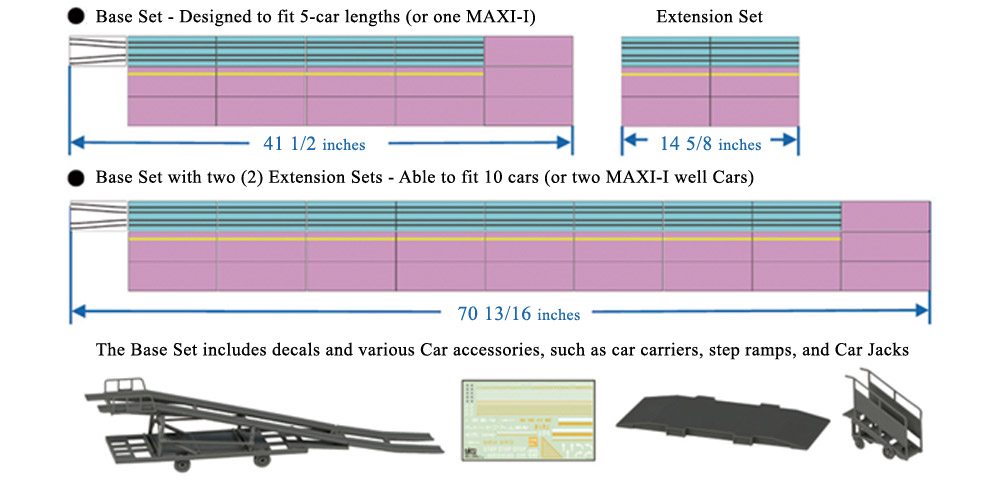

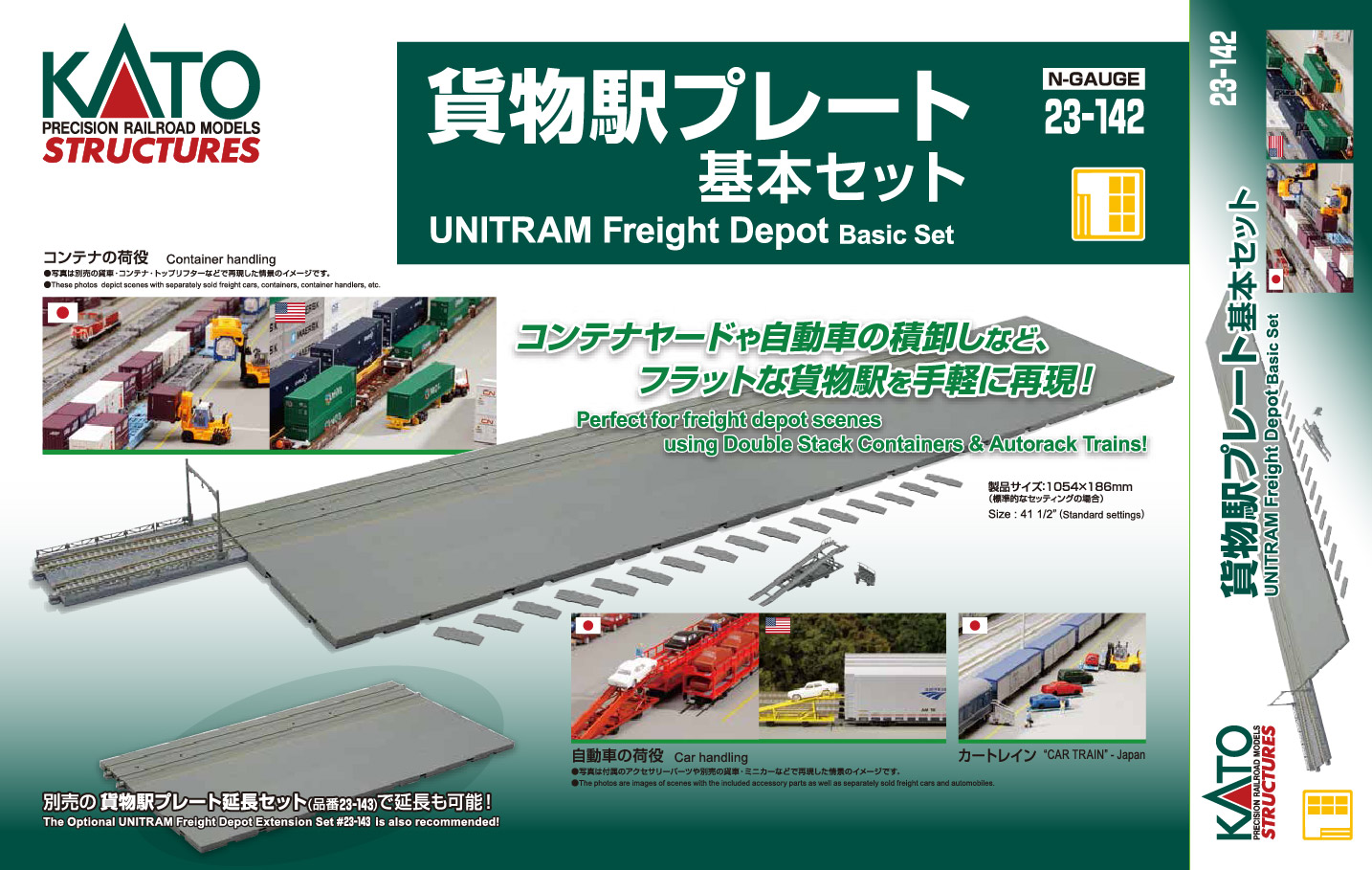

	23-142	N UNITRAM Freight Depot Basic Set Perfect for freight depot scenes using Double Stack Containers & Autorack Trains! - 1054mm (41 1/2") long, the length of a 5-car freight Autorack consist or MAXI-I well car. [Click Here to see how this set can be used] Includes: UNITRAM Track Plates - 4 x Straight (186mm) UNITRAM Road Plates - 4 x straight plates w/ Yellow line marking (186mm), 7 x blank straight plates (186mm) UNITRAM Street Track to UNITRACK conversion track (124mm) Car Accessory parts, including Car ramps, boarding steps, and car pallets (painting required) UNITRAM Accessory kit - includes catenary pole set, fences, decals, track plate joiners (16) and Dio-town plate joiners (24)	$110.00*

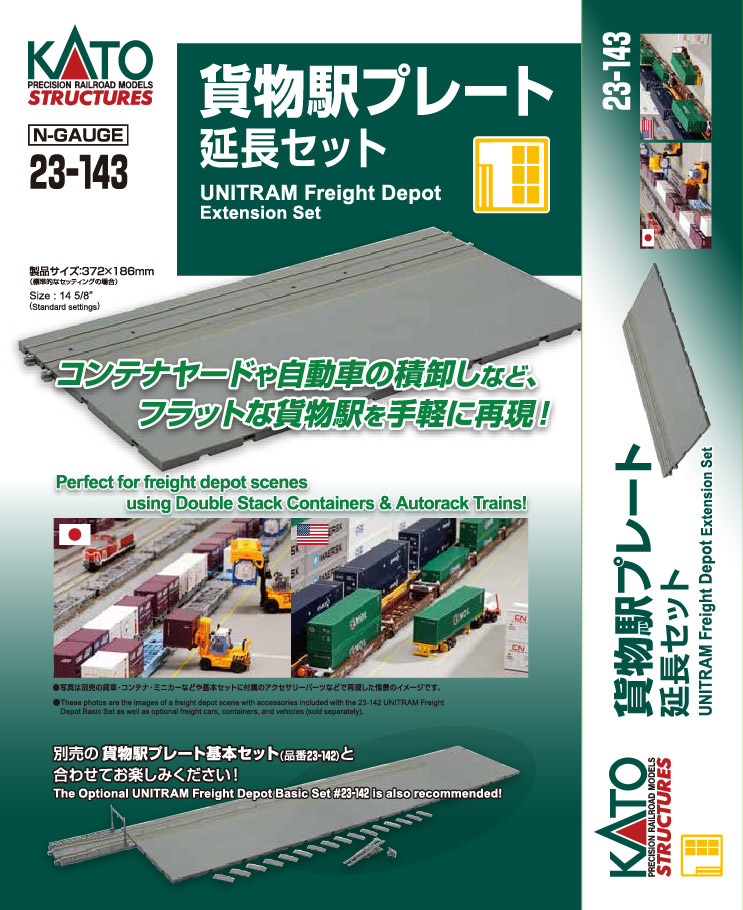

	23-143	N UNITRAM Freight Depot Extension Set Meant to extend the 23-142 set to lengthen the track segment. - 372mm (14 5/8" long) Includes: UNITRAM Track Plates - 2 x Straight (186mm) UNITRAM Road Plates - 2 x straight plates w/ Yellow line marking (186mm), 2 x blank straight plates (186mm) Decals, track plate joiners (8) and Dio-town plate joiners (16)	$40.00*

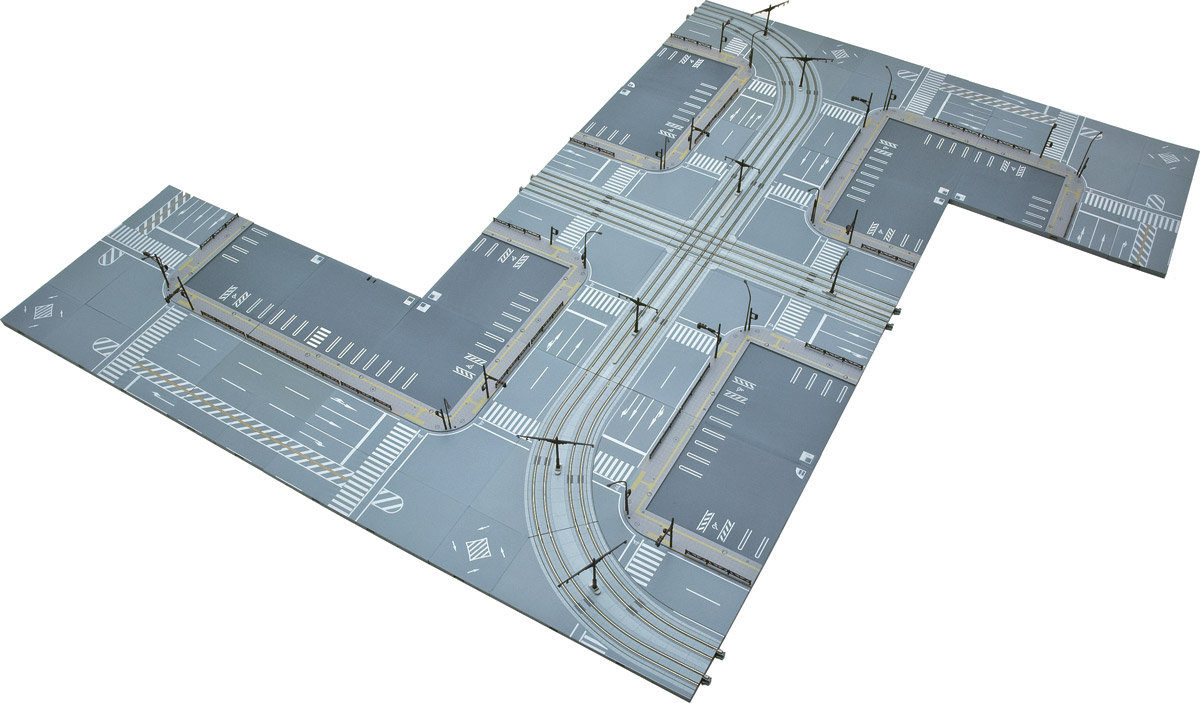

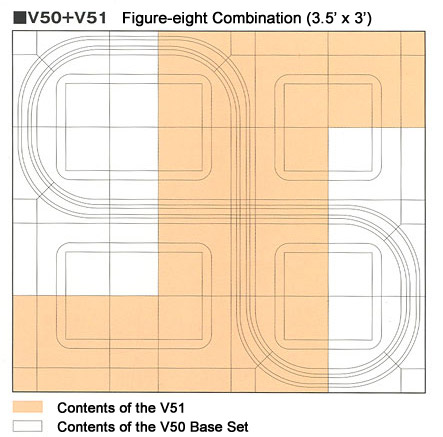

	40-801	V51 UNITRAM Figure-Eight Crossing Expansion Set [Click Here to see how this set can be used] Includes: UNITRAM Track Plates - 2 x Straight (124mm), 4 x Curved (R180mm), 1 x 90 degree double crossing UNITRAM Road Plates - 2 Straight Road Plate (124mm), 6 x Center Plate with intersection, 8 x Corner Plate with intersection, 2 x Curved Road Plates for curves UNITRAM Accessory kit - includes catenary pole set, fences, streetlights and traffic signals, tram joiners and Dio-town plate joiners	$200.00*

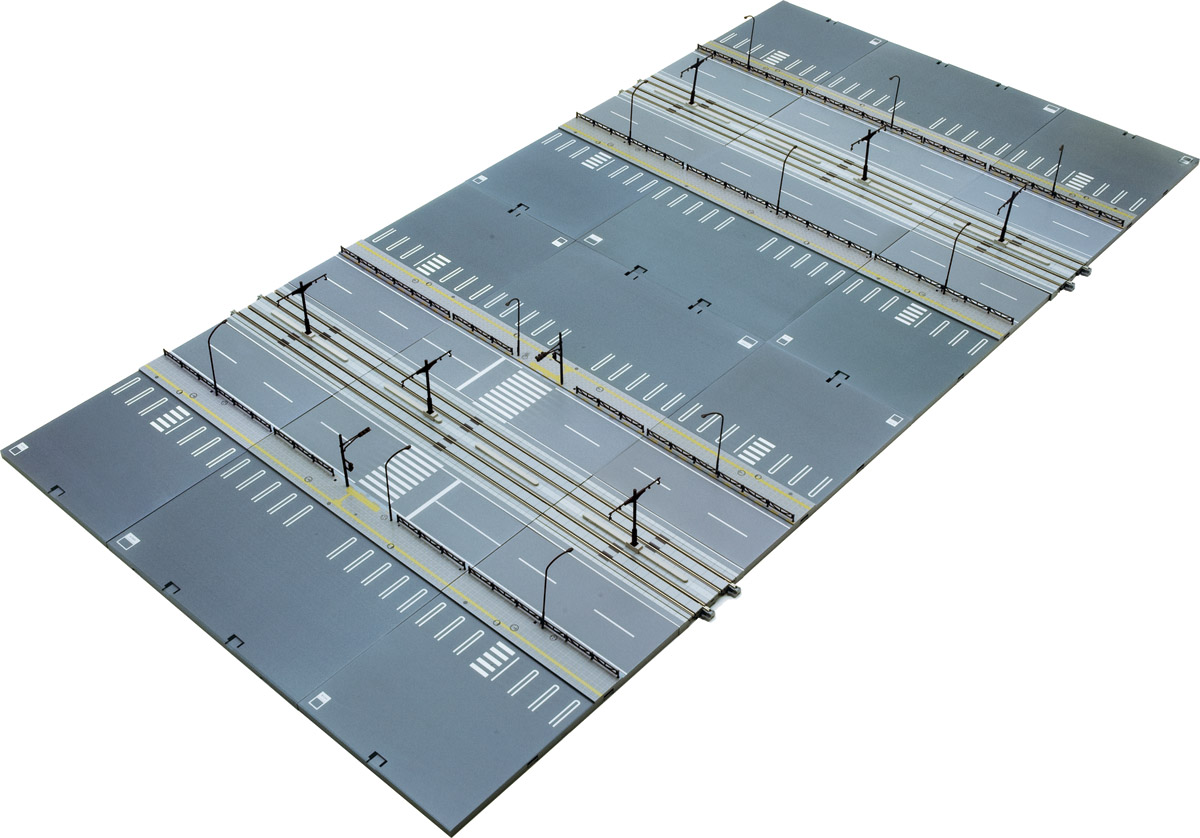

	40-802	V52 UNITRAM Double-Wide Straight Track Expansion Set Includes: UNITRAM Track Plates - 4 x Straight (124mm), 1 x Straight (186mm), 1 x Straight with Cross walk (186mm) UNITRAM Accessory kit - includes catenary pole set, fences, streetlights and traffic signals, tram joiners and Dio-town plate joiners	$120.00*

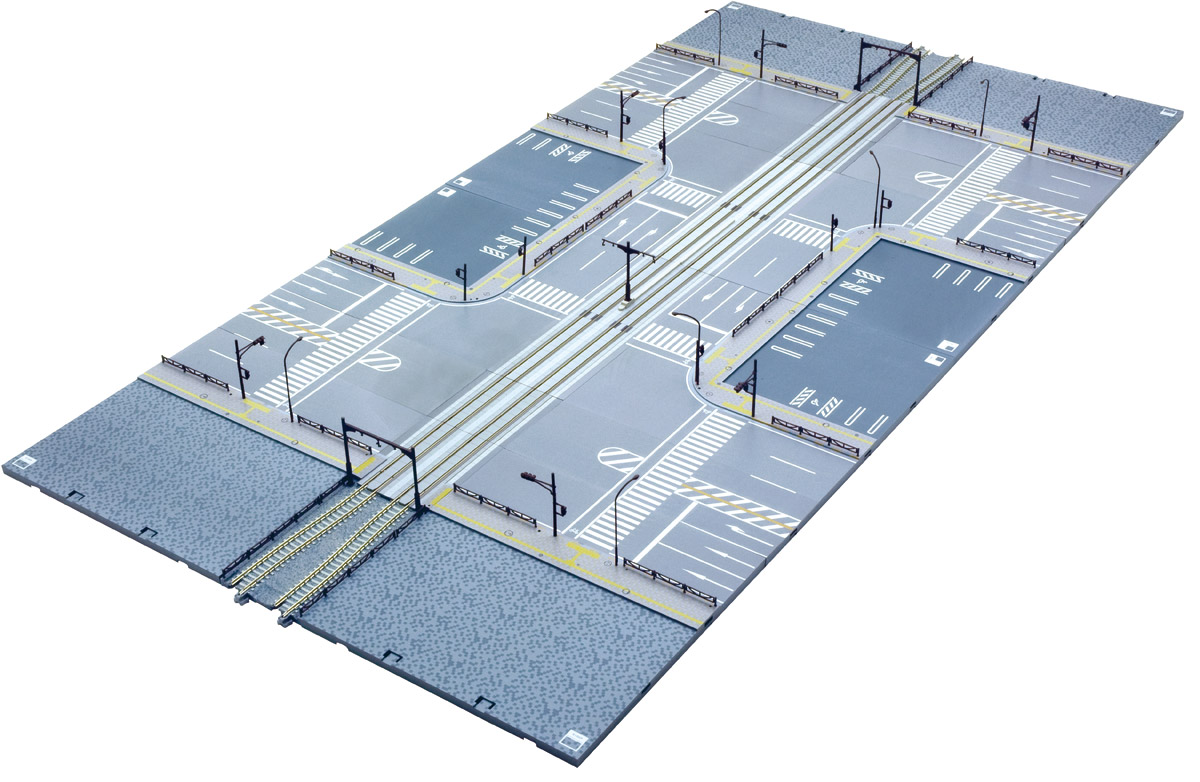

	40-803	V53 UNITRAM Street track to Concrete Tie Double Track Expansion Set Includes: UNITRAM Track Plates - 2 x Straight (long, track only), 2 x Straight (short, track only), 2 x Straight Track and road plate transitions from Street Track to Concrete tie Double Track UNITRAM Road Plates - 4 x Corner Plate with intersection UNITRAM Accessory kit - includes catenary pole set, fences, streetlights and traffic signals, tram joiners and Dio-town plate joiners	$135.00*

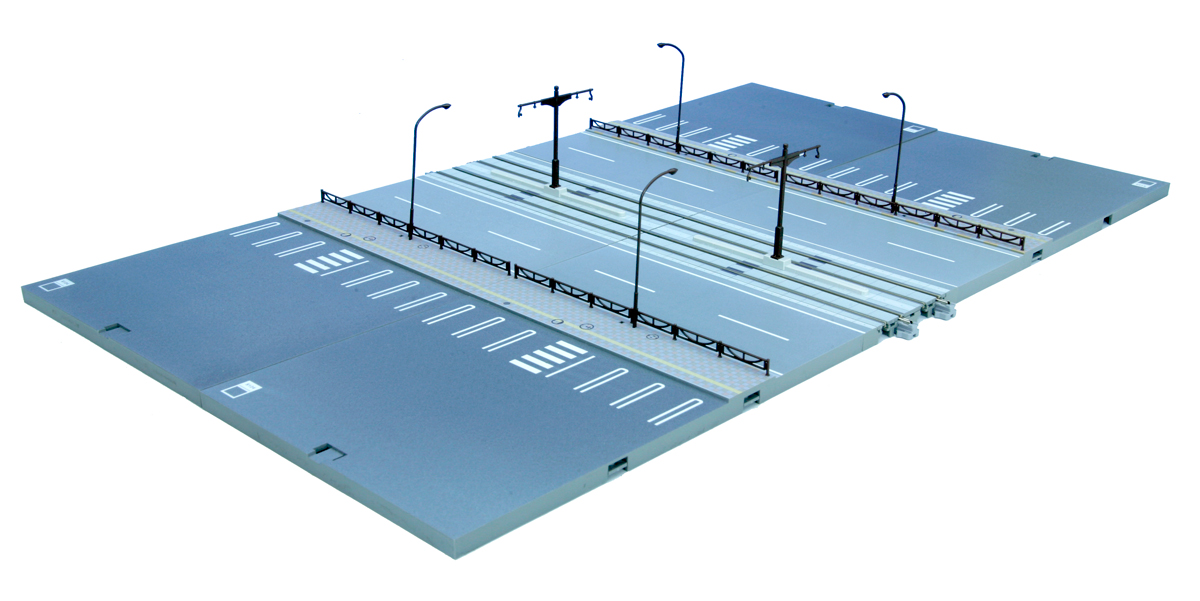

	40-804	V54 UNITRAM Street Track Straight Track Expension Includes: UNITRAM Track Plates - 2 x Straight (124mm)	$52.00*

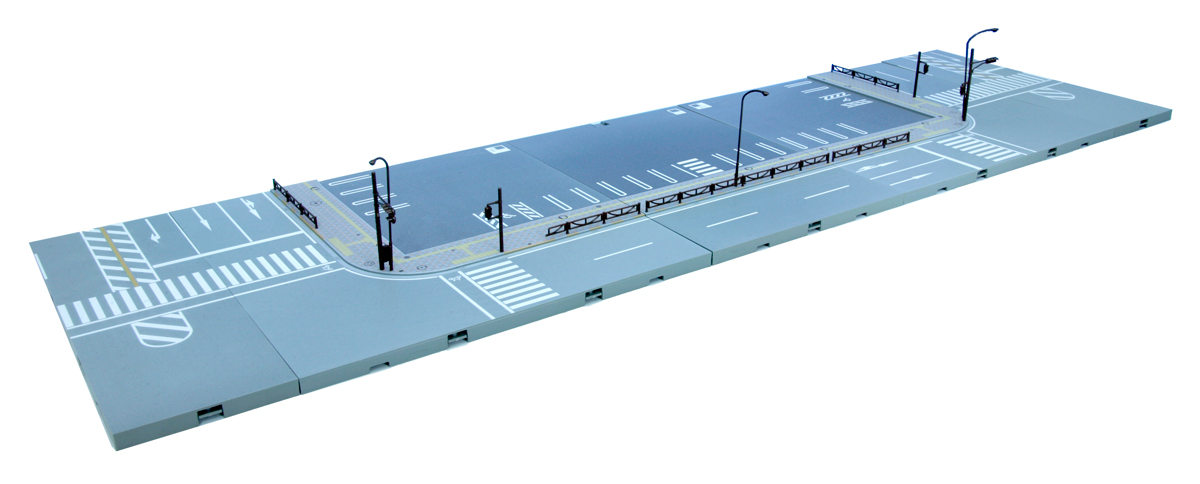

	40-820	UNITRAM Street Set Includes: UNITRAM Road Plates - 1 Straight Road Plate (124mm), 2 x Center Plate with intersection, 2 x Corner Plate with intersection UNITRAM Accessory kit - includes fences, street lights, traffic signals, and plate joiners.	$52.00*

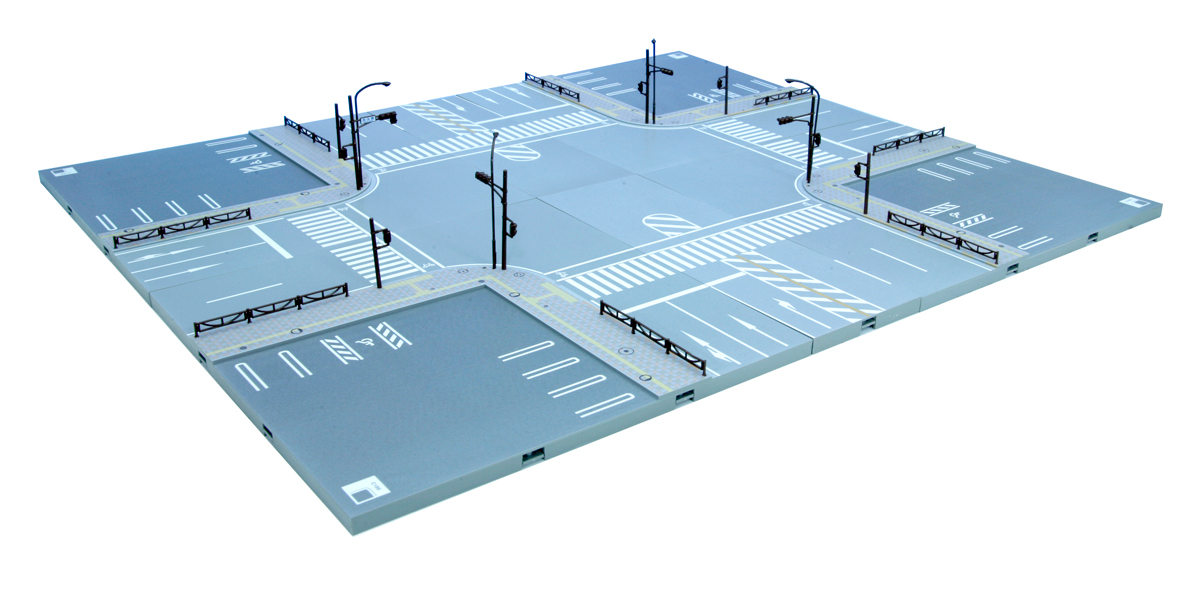

	40-821	UNITRAM Four way street intersection Set Includes: UNITRAM Road Plates - 2 x Center Plate with intersection, 4 x Corner Plate with intersection UNITRAM Accessory kit - includes fences, street lights, traffic signals, and plate joiners.	$70.00*
* Due to the import/special order nature of these items, MSRP may vary depending on the Yen/Dollar exchange rate.

	UNITRAM Track pieces and accessories
Photo (Click to enlarge)	Item #	Description	MSRP
	40-010	UNITRAM Street Track Straight 186mm (7 5/16") [2 pcs] Includes: UNITRAM Track Plates - 2 x 186mm Straight Track Pieces. UNITRAM Accessory Kit - 4 x Street Track connectors	17.50
	40-020	UNITRAM Street Track Straight 124mm (4 7/8") [2 pcs] Includes: UNITRAM Track Plates - 2 x 124mm Straight Track Pieces. UNITRAM Accessory Kit - 4 x Street Track connectors	16.00

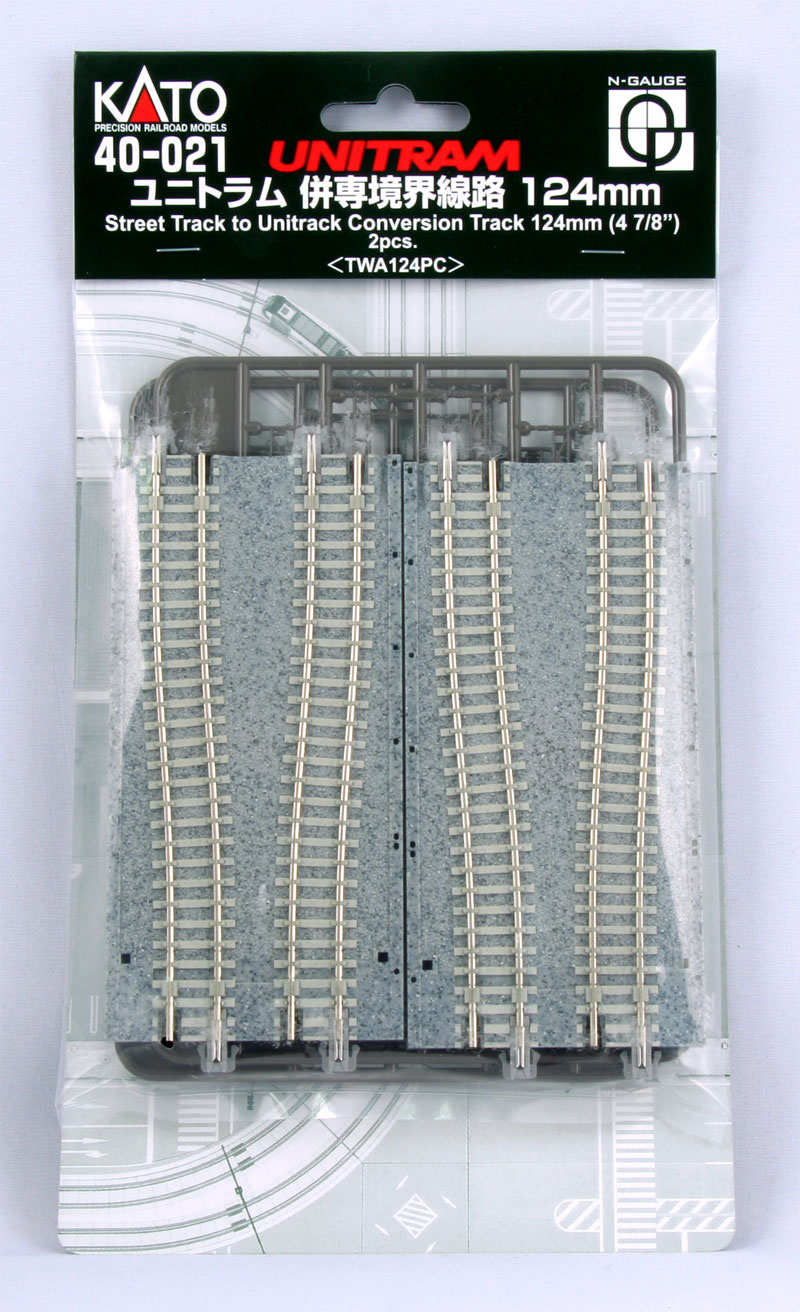

	40-021	UNITRAM Street Track to UNITRACK conversion track 124mm (4 7/8") [2 pcs] Widens the track from a 25mm spacing (UNITRAM spacing) to a 33mm spacing (Double track spacing) Includes: UNITRAM-UNITRACK COnversion Plates - 2 x 124mm Straight Track Pieces. UNITRAM Accessory Kit - Catenary pole set, fencing sections.	17.50

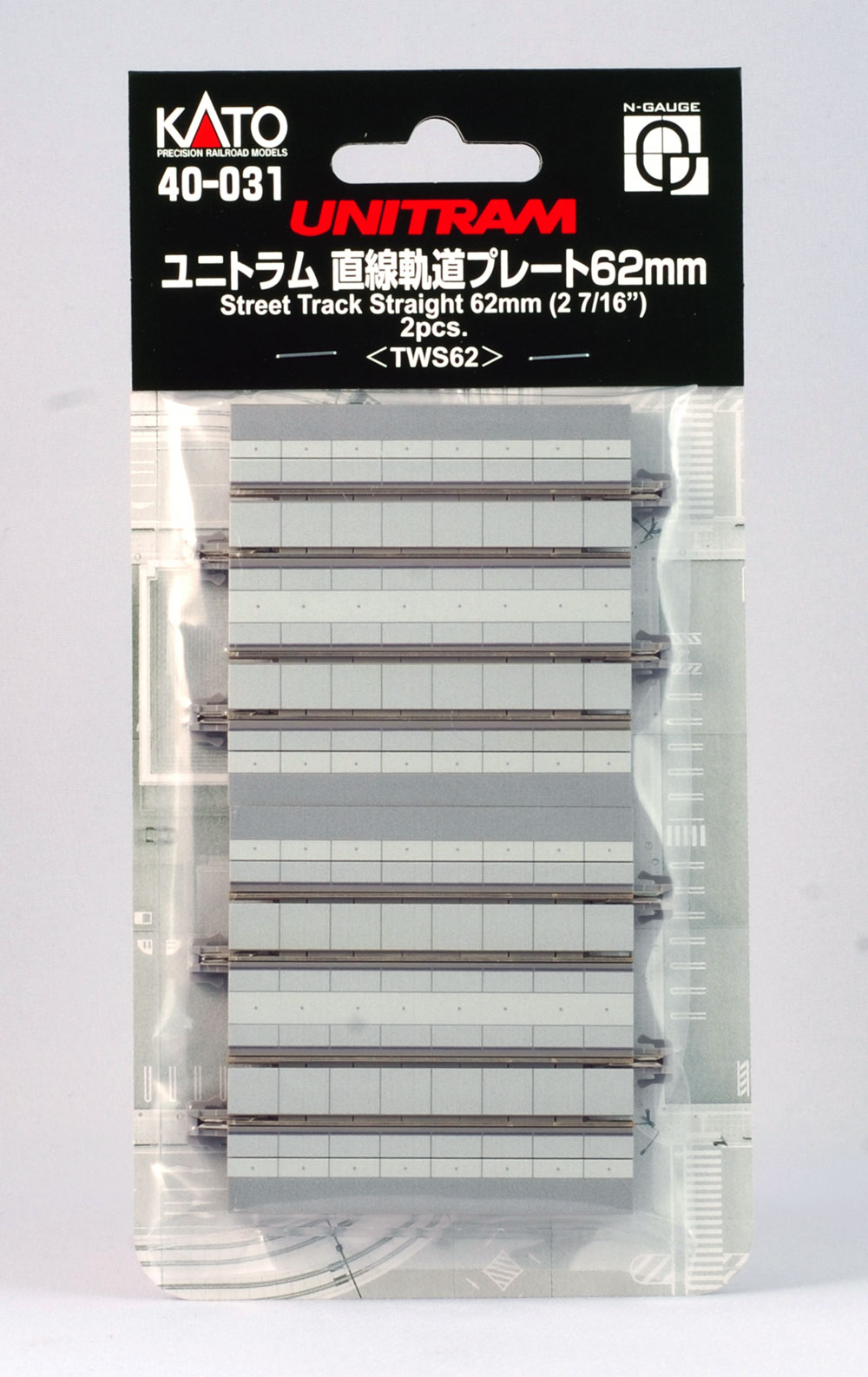

	40-031	UNITRAM Street Track Straight 62mm (2 7/16") [2 pcs] Includes: UNITRAM Track Plates - 2 x 62mm Straight Track Pieces. UNITRAM Accessory Kit - 4 x Street Track connectors	$15.00

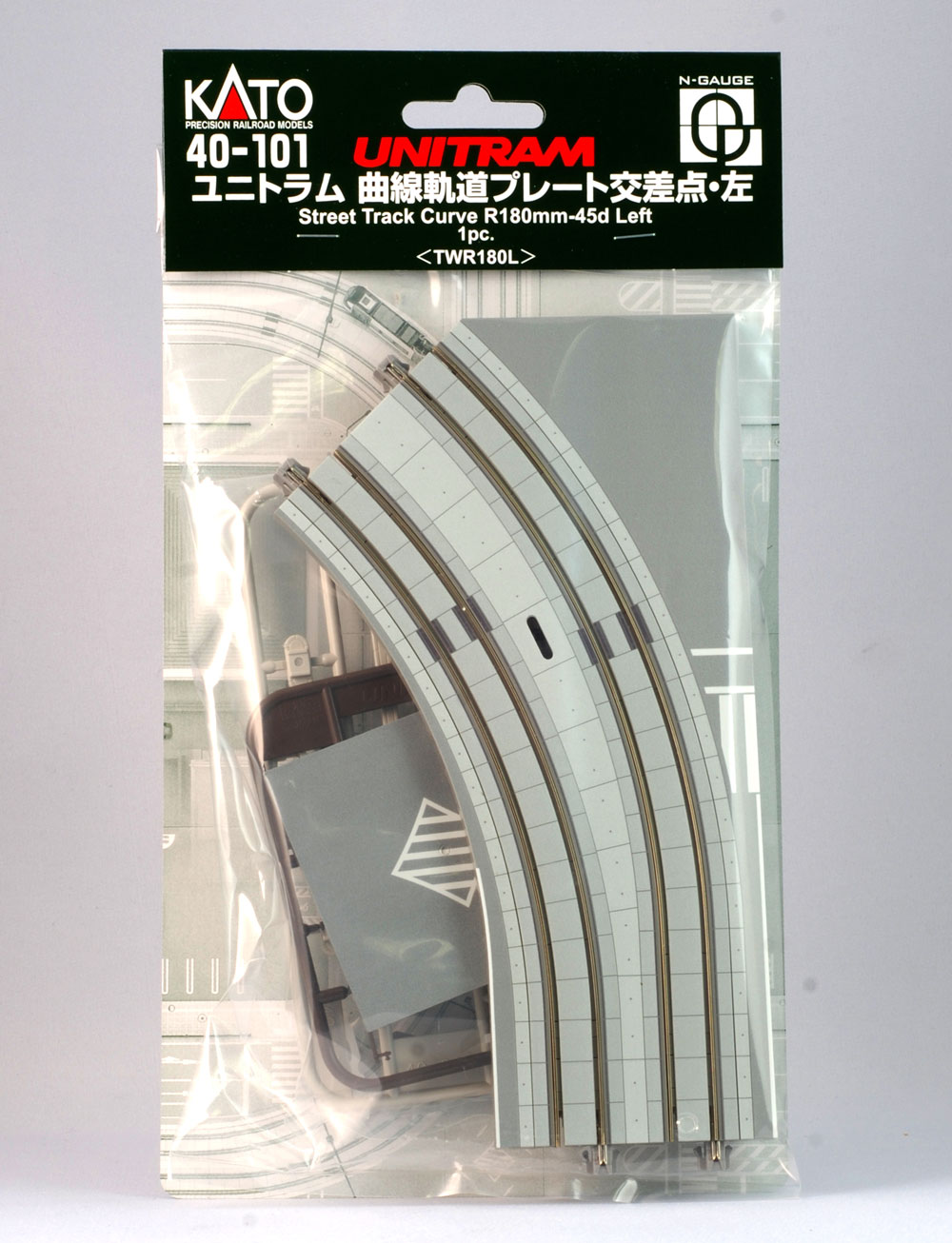

	40-101	UNITRAM Street Track Curve R180mm-45� Left [1 pc] Includes: UNITRAM Track Plates - 1 x R180mm-45� Left Curve piece. UNITRAM Road Plates - 1 x Center Plate with intersection UNITRAM Accessory Kit - Catenary pole set, street dividers, 3 x Street track connectors, 2 x Road plate connectors	$12.00
	40-102	UNITRAM Street Track Curve R180mm-45� Right [1 pc] Includes: UNITRAM Track Plates - 1 x R180mm-45� Right Curve piece. UNITRAM Road Plates - 1 x Center Plate with intersection UNITRAM Accessory Kit - Catenary pole set, street dividers, 3 x Street track connectors, 2 x Road plate connectors	$12.00

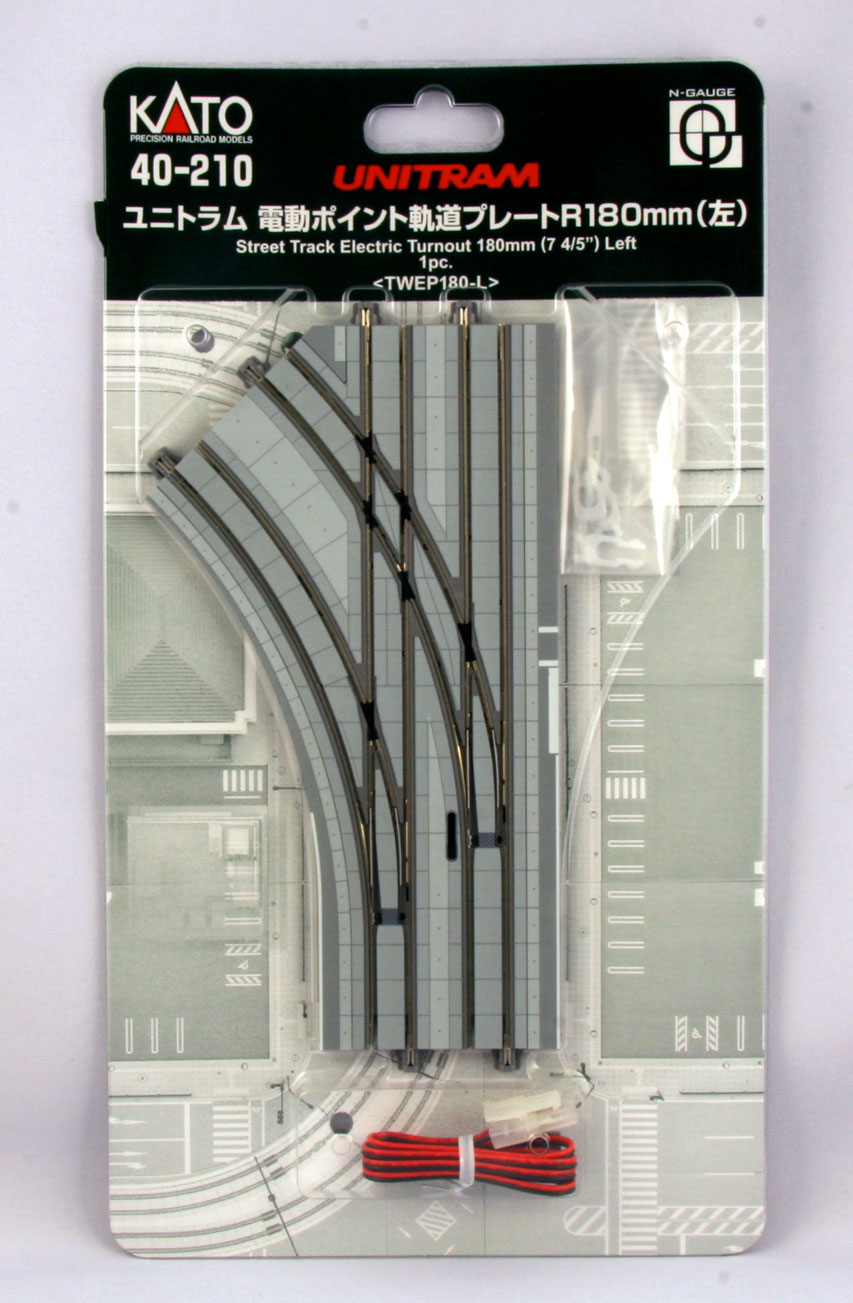

	40-210	UNITRAM Street Track Electric Turnout R180mm Left [1 pc] CLICK HERE to download a package scan with instructions for how to set up the UNITRAM turnouts. Includes: UNITRAM Track Plates - 1 x Electric Turnout R180mm Left UNITRAM Accessory Kit - 3 x Street track connectors, 1 x Turnout switch cable	$65.00

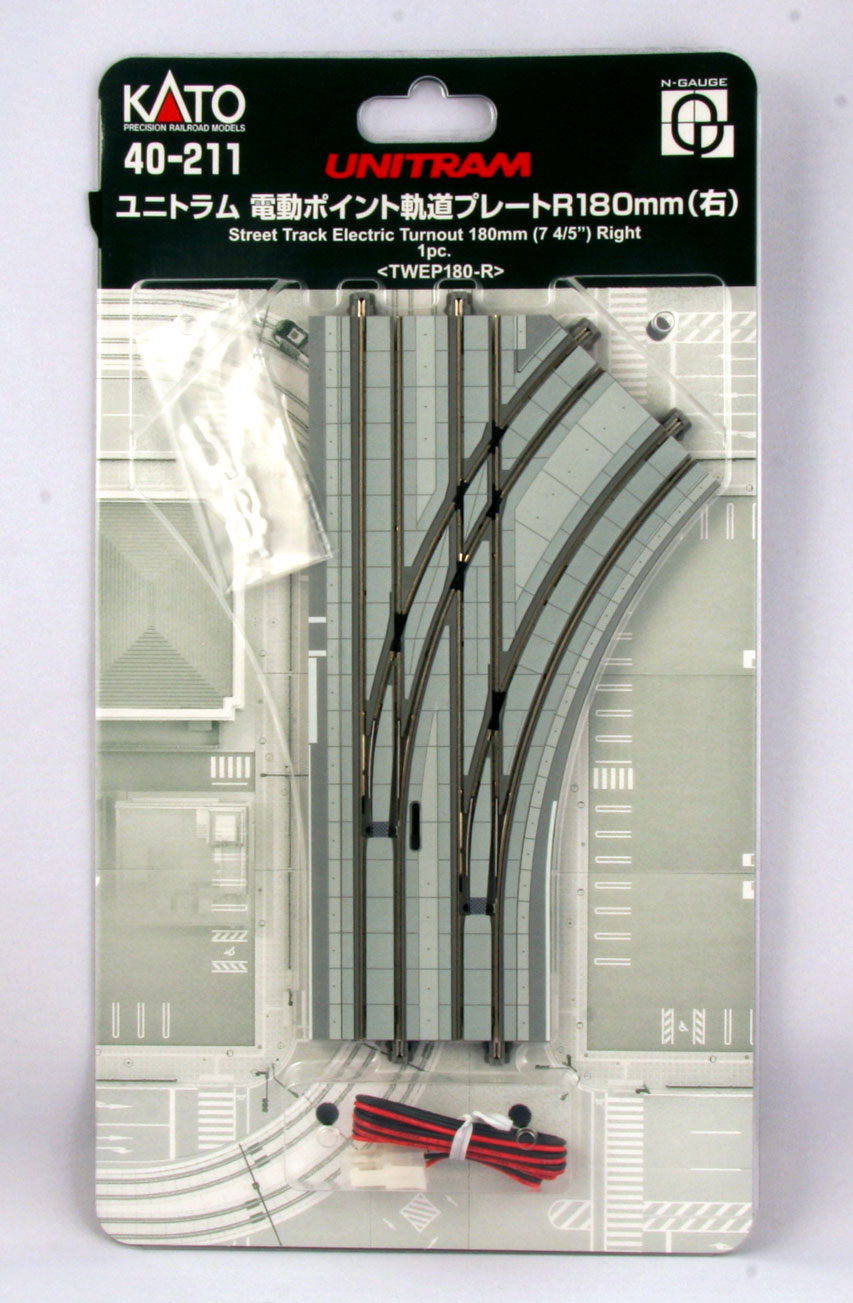

	40-211	UNITRAM Street Track Electric Turnout R180mm Right [1 pc] CLICK HERE to download a package scan with instructions for how to set up the UNITRAM turnouts. Includes: UNITRAM Track Plates - 1 x Electric Turnout R180mm Right UNITRAM Accessory Kit - 3 x Street track connectors, 1 x Turnout switch cable	$65.00

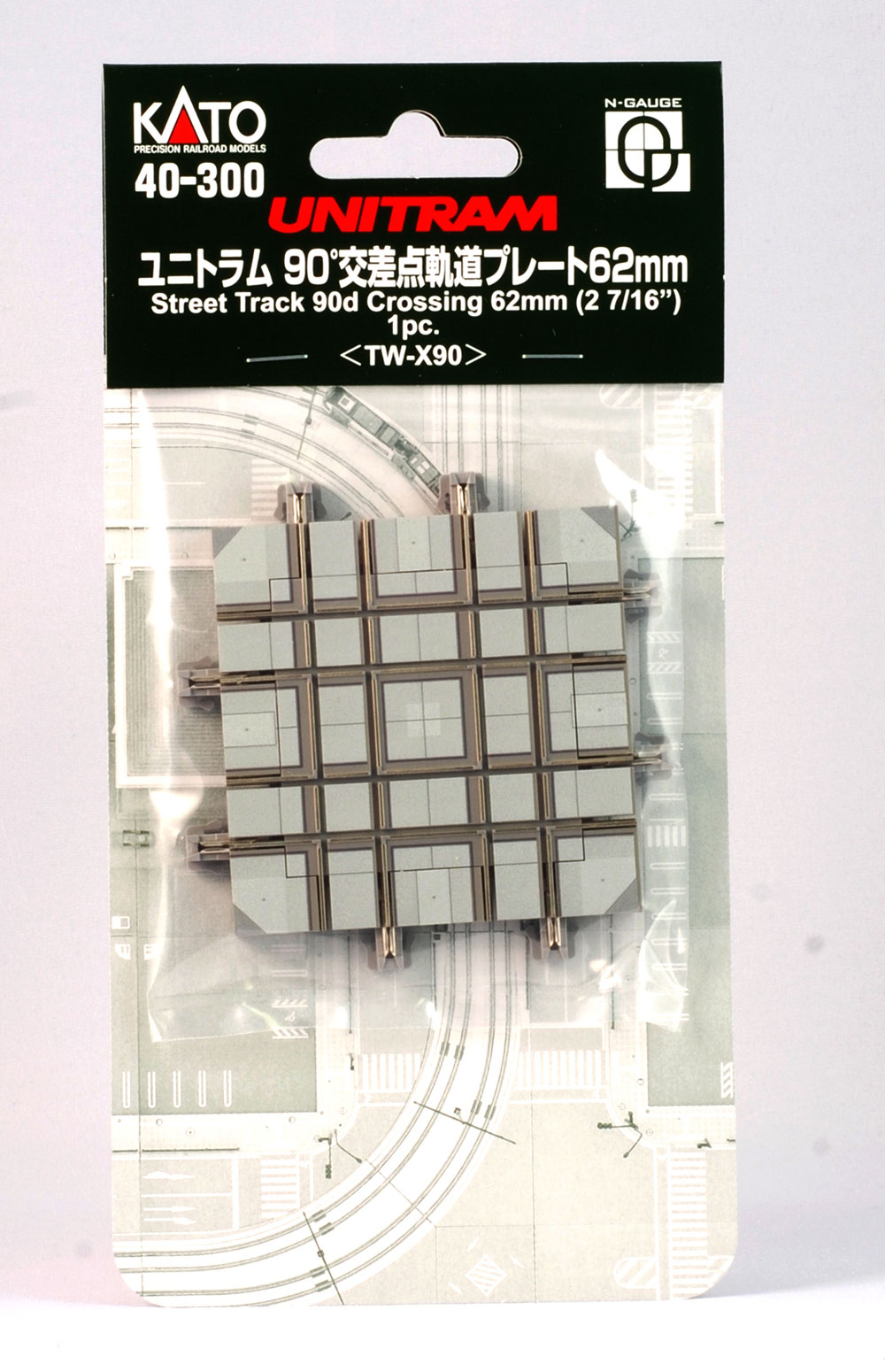

	40-300	UNITRAM Street Track 62mm 90� Crossing Section [1pc] Includes: UNITRAM Track Plates - 1 x 62mm 90� Crossing Section	$12.50

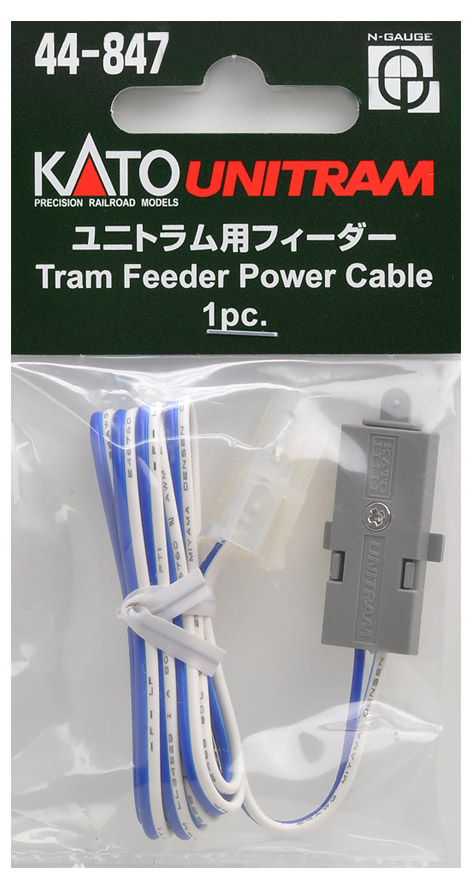

	44-847	UNITRAM Tram Feeder Power Cable	$8.00*

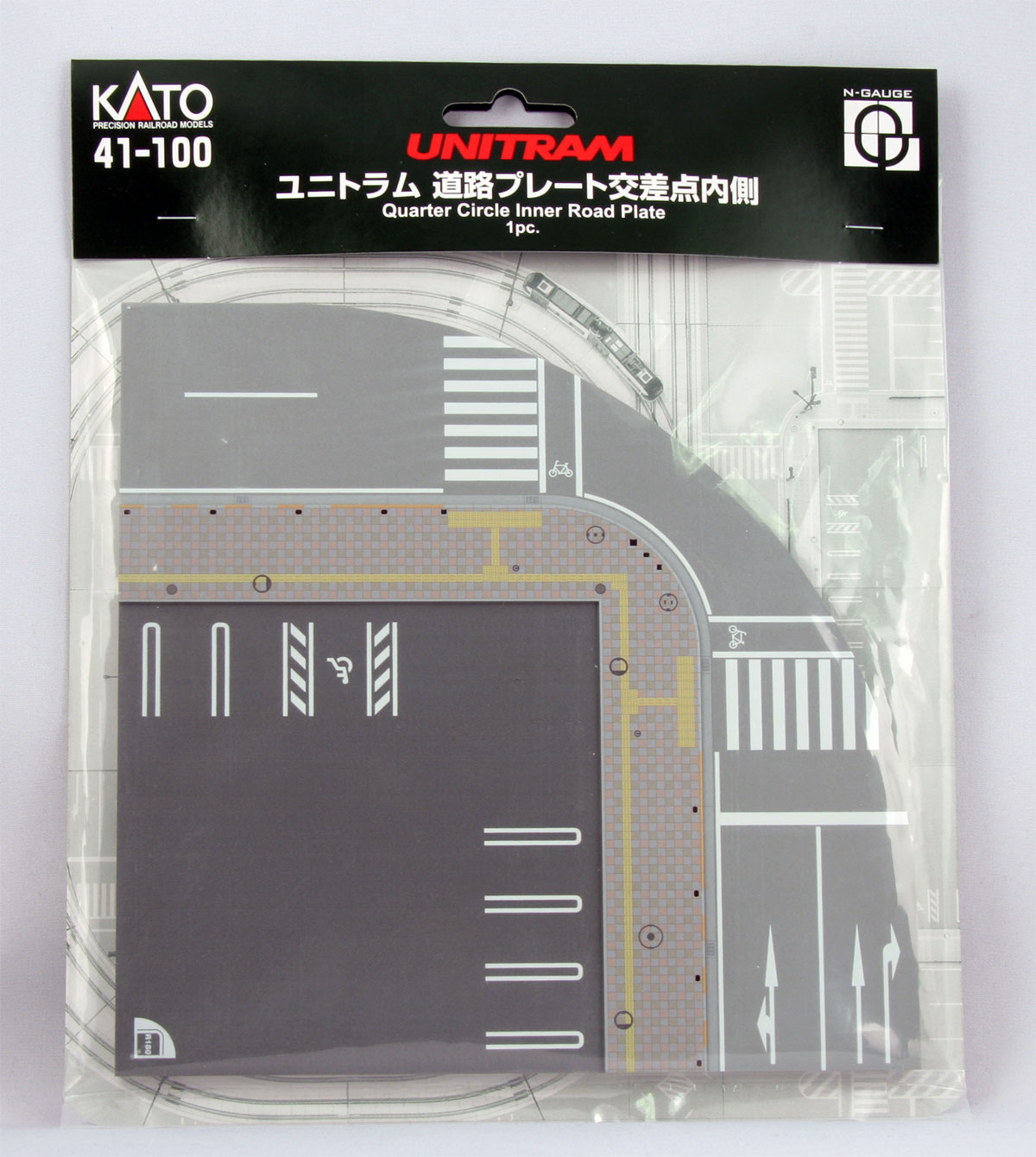

	41-100	UNITRAM Quarter Circle Inner Road Plate - Japanese Style [1pc] Includes: UNITRAM Road Plates - 1 x Quarter Circle Inner Road Plate UNITRAM Accessory Kit - 4 x Road plate connectors	$15.50

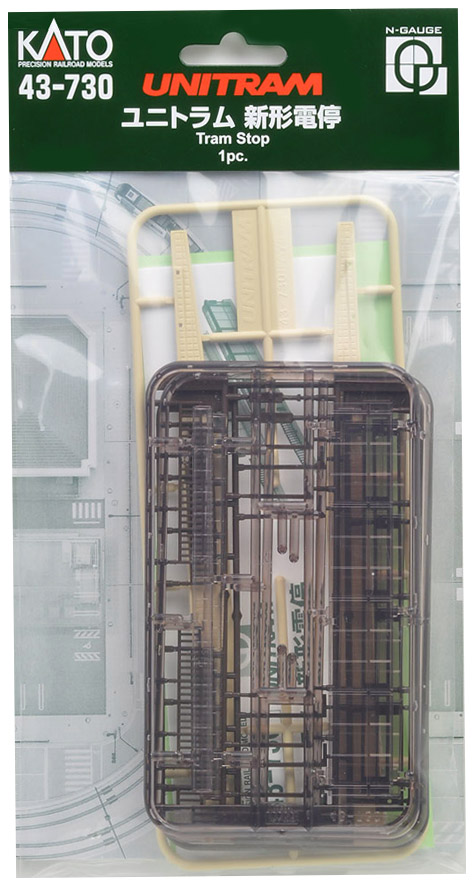

	43-730	UNITRAM Japanese Tram Stop kit	$22.50*

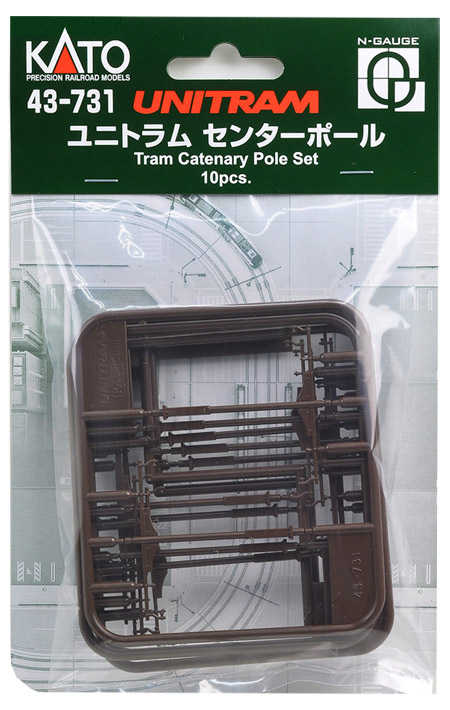

	43-731	UNITRAM Japanese Tram Catenary Pole set [10 pcs]	$9.50*
* Due to the import/special order nature of these items, MSRP may vary depending on the Yen/Dollar exchange rate.
