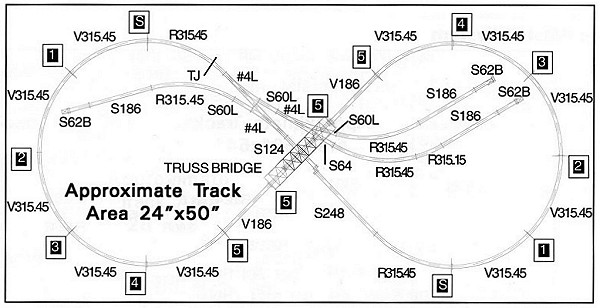

Mattoon Belt Line

Click Image to Zoom In!

An interesting up and over layout with three sidings and room for more!

Bill of Materials
QTYStock #Description
120-000248mm (9 3/4") Straight Track
320-010186mm (7 5/16") Straight Track
120-020124mm (4 7/8") Straight Track
120-03064mm (2 1/2") Straight Track
320-046~048Bumper (Use any of three styles)
520-120315mm (12 3/8") Radius 45� Curve Track
120-121315mm (12 3/8") Radius 15� Curve Track
320-220#4 Right Turnout (Includes S60L/R Straight Tracks)
120-221#4 Right Turnout (Includes S60L/R Straight Tracks)
220-410186mm (7 5/16") Single Track Straight Viaduct Track
120-450~454186mm (7 5/16") Single Track Plate Girder Bridge
1020-520315mm (12 3/8") Radius 45� Single Track Viaduct Curve Track
1 set23-01515mm - 50mm (1/2" - 2") Single Track Incline Pier Set
1 set23-01750mm (2") Single Track Pier Set
1 pair24-818Terminal UniJoiners
124-843Terminal Adapter Cord
� Used to connect Terminal UniJoiners to power pack.
Optional Items
QTYStock #Description
324-840Turnout Control Switch
?24-841Turnout Extension Cord (Used to extend cord from turnout)
124-842DC Converter (If 24-840 is used)
