Corner Central

Click Image to Zoom In!

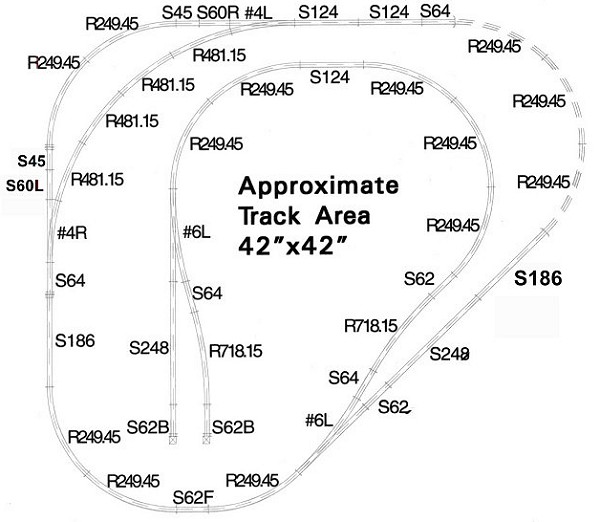

A nice little track plan that has a main line with a passing track and a branch line.

Bill of Materials
QTYStock #Description
220-000248mm (9 3/4") Straight Track
220-010186mm (7 5/16") Straight Track
320-020124mm (4 7/8") Straight Track
420-03064mm (2 1/2") Straight Track
220-04062mm (2 7/16") Straight Track
120-04162mm (2 7/16") Feeder Track
220-046~048Bumper (Use any of three styles)
220-09145.5mm (1 3/4") Straight Track
1320-100249mm (9 3/4") Radius 45� Curve Track
220-150718mm (28 1/4") Radius 15� Curve Track
420-160481mm (19") Radius 15� Curve Track
220-202#6 Left Turnout
120-220#4 Right Turnout (Includes S60L/R Straight Tracks)
120-221#4 Right Turnout (Includes S60L/R Straight Tracks)
124-843Terminal Adapter Cord
� Used to connect Feeder Track to power pack.
Optional Items
QTYStock #Description
424-840Turnout Control Switch
?24-841Turnout Extension Cord (Used to extend cord from turnout)
124-842DC Converter (If 24-840 is used)
