Colorado Western

Click Image to Zoom In!

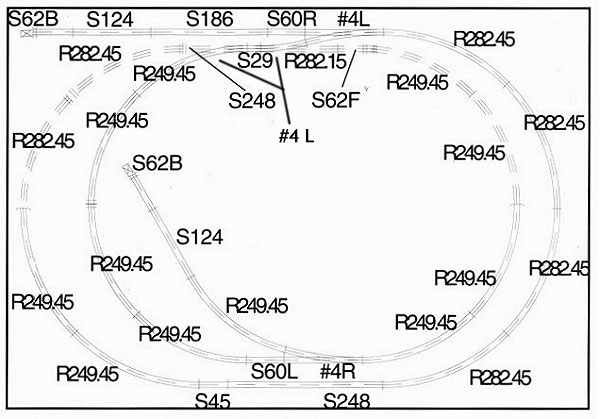

Suggested track layout to fit the NOCH "Colorado" prefabricated decorated layout. The landforms create an interesting over and under track plan with two tunnels. The open space in the middle can accept a variety of industrial or town buildings.

Of course, this track plan can also be used on your own layout board!

Bill of Materials
QTYStock #Description
220-000248mm (9 3/4") Straight Track
120-010186mm (7 5/16") Straight Track
220-020124mm (4 7/8") Straight Track
120-04162mm (2 7/16") Feeder Track
220-046~048Bumper (Use any of three styles)
1 ea20-09129mm (1 1/8") Straight Track
45.5mm (1 3/4") Straight Track
1120-100249mm (9 3/4") Radius 45� Curve Track
620-110282mm (11") Radius 45� Curve Track
120-111282mm (11") Radius 15� Curve Track
320-220#4 Left Turnout (Includes S60L/R Straight Tracks)
120-221#4 Right Turnout (Includes S60L/R Straight Tracks)
124-843Terminal Adapter Cord
� Used to connect Feeder Track to power pack.
Optional Items
QTYStock #Description
424-840Turnout Control Switch
?24-841Turnout Extension Cord (Used to extend cord from turnout)
124-842DC Converter (If 24-840 is used)
