Ground level Concrete Tie Double Track |
 |
 |

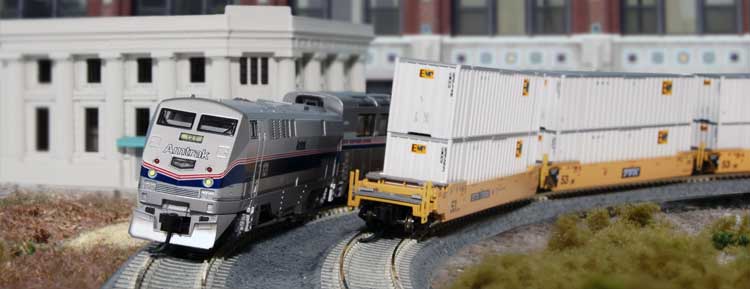

The next stage in realistic snap track - "Superelevation" is the term used to describe track in which one rail is higher than the other; much like a banked curve on a freeway offramp or a high speed corner in NASCAR, these banked curves are specially designed to reduce wheel wear and increase both comfort and safety in all manner of trains, fast or slow, passenger and freight. These superelevated curves are a standard installation in modern railroads, and before now they were complicated and finicky to replicate at model railroad scale level, but no longer! Kato UNITRACK makes it simple with modular easement and superelevated curves, available with modern pre-cast concrete ties (which not only modernize the look of your rails, but help differentiate the pieces at a glance from non-banked track pieces).
Please note that all of these Concrete Tie Double Track pieces are 100% compatible with our regular double and single track Unitrack pieces and bridges and can be added into your existing Unitrack layouts!
See just a sampling of the track layouts you can create using the Superelevated Track Sets by clicking here!
Double Track pieces are available both in individual packages as listed below and also in sets as part of our Variation Series Track Line.
 |
Turnouts | ||
(Click to enlarge) |
Item # | Description | MSRP |
 |

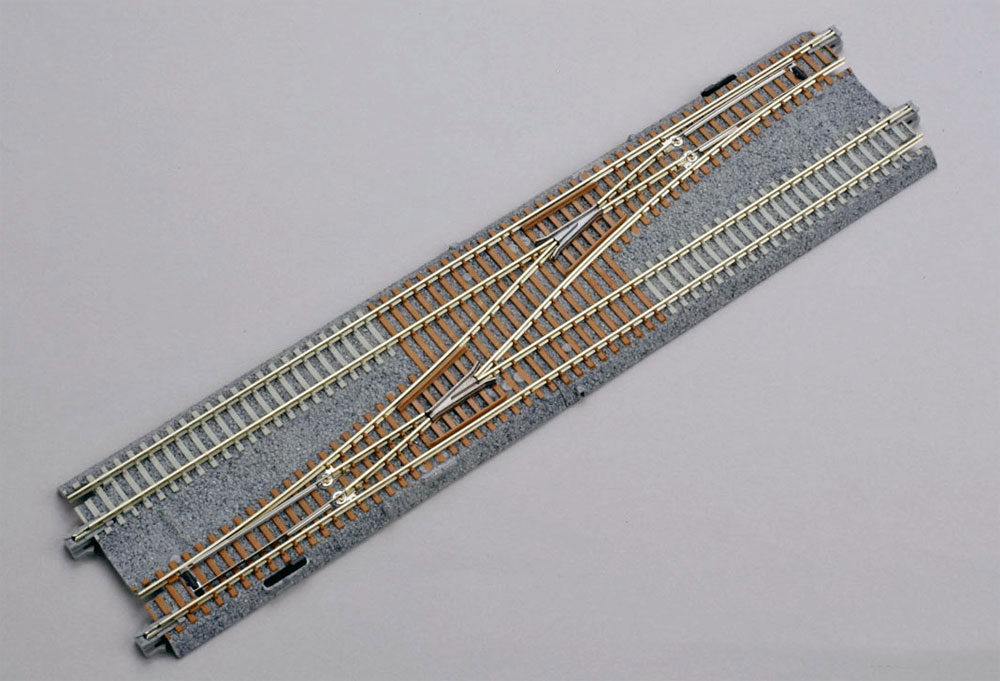

20-230 | Double Track Single Crossover (Left)
|
$66.00 |
 |

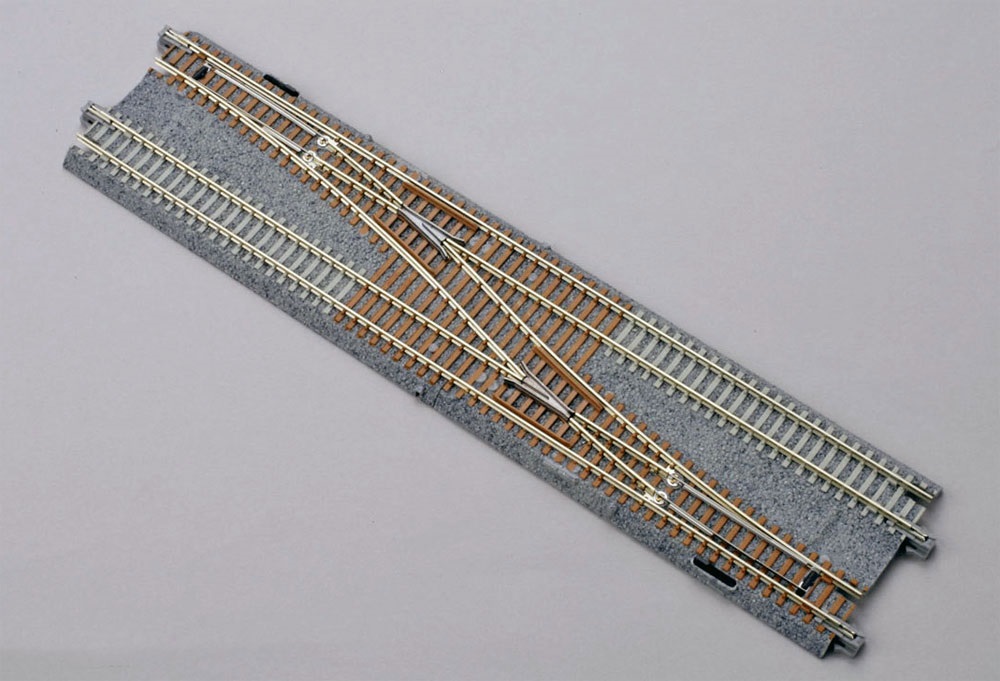

20-231 | Double Track Single Crossover (Right)
|
$66.00 |
 |

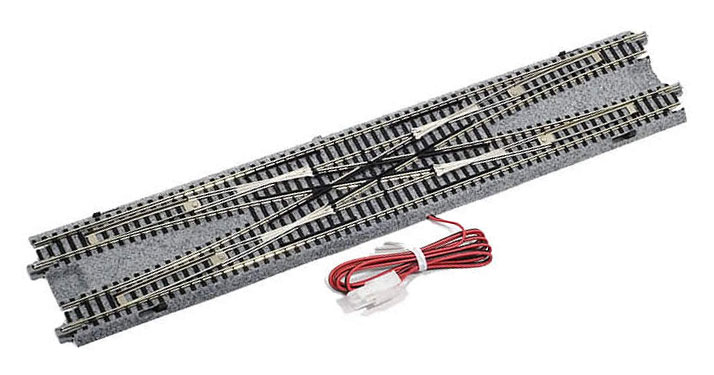

20-210 | 310mm (12 3/16") Double Crossover Turnout | $75.50 |
|
Ground Level Concrete Tie Double Track | ||
(Click to enlarge) |
Item # | Description | MSRP |
 |
20-004 | 248mm (9 3/4") Concrete Tie Double Track Straight [2 pcs] | $13.50 |
| 20-012 | 186mm (7 5/16") Concrete Tie Double Track Straight [2 pcs] | $13.00 | |
| 20-023 | 124mm (4 7/8") Concrete Tie Double Track Straight [2 pcs] | $12.00 | |
| 20-042 | 62mm (2 7/16") Concrete Tie Double Track Straight [2 pcs] | $11.00 | |
| 20-043 | 62mm (2 7/16") Concrete Tie Double Track Feeder [1 pcs] - Includes two track power leads and regular 2 7/16" straight track piece |
$17.00 | |
| 20-181 | 414mm/381mm Radius 45� (16 3/8" - 15") CT Double Track Superelevated Curve Track [2 pcs] | $15.00 | |
| 20-182 | 414mm/381mm Radius 22.5� (16 3/8" - 15") CT Double Track Easement Curve Track Right and Left | $13.50 | |
| 20-183 | 315mm/282mm Radius 45� (12 3/8" - 11") CT Double Track Superelevated Curve Track [2 pcs] | $15.00 | |
| 20-184 | 315mm/282mm Radius 22.5� (12 3/8" - 11") CT Double Track Easement Curve Track Right and Left | $13.50 | |
 |

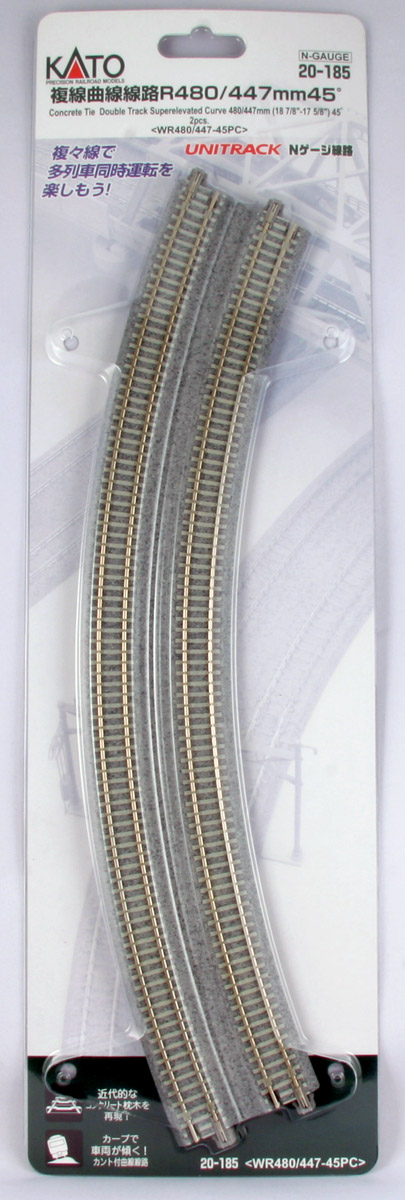

20-185 | 480mm/447mm Radius 45� (18 7/8" - 17 5/8") CT Double Track Superelevated Curve Track [2 pcs] | $19.00 |
 |

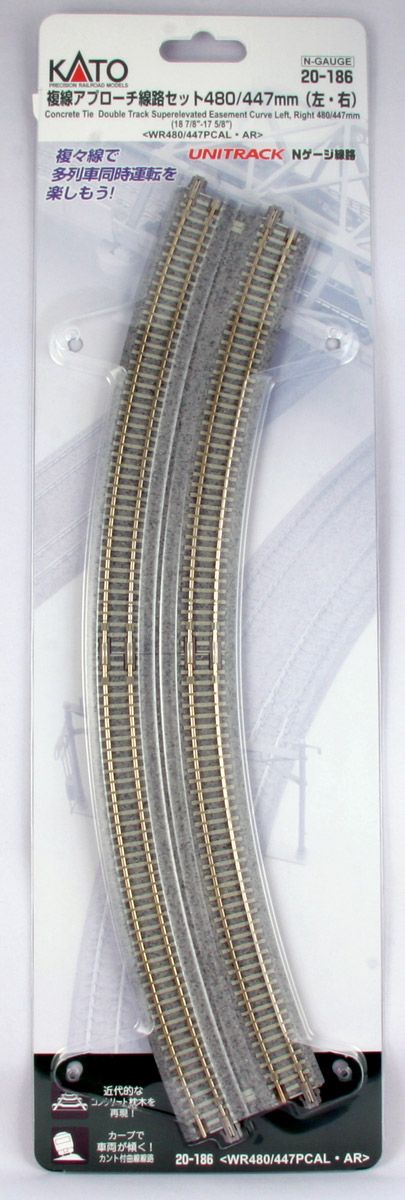

20-186 | 480mm/447mm Radius 22.5� (18 7/8" - 17 5/8") CT Double Track Easement Curve Track Right and Left | $16.00 |
 |

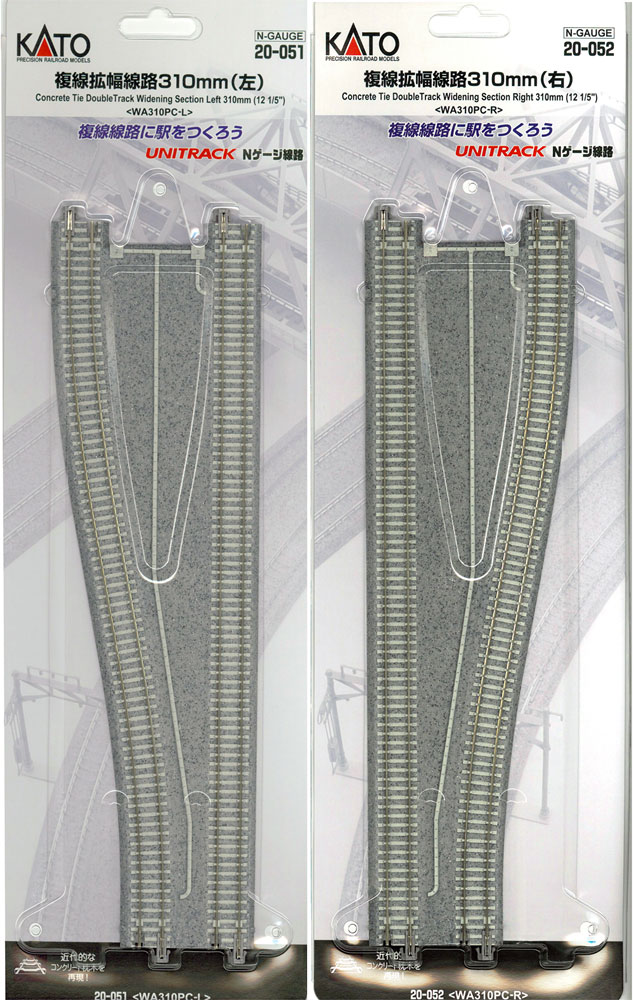

20-051 | CT Double Track Widening Section Left 310mm (12 1/5") | $18.00 |
| 20-052 | CT Double Track Widening Section Right 310mm (12 1/5") | $18.00 | |
|
Ground Level Concrete Slab Double Track | ||
(Click to enlarge) |
Item # | Description | MSRP |
 |

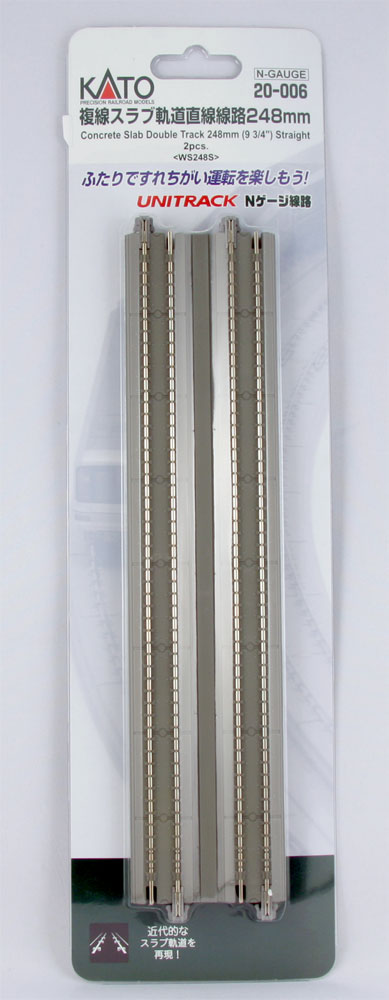

20-006 | 248mm (9 3/4") Concrete Slab Double Track Straight [2 pcs] | $14.00 |
 |

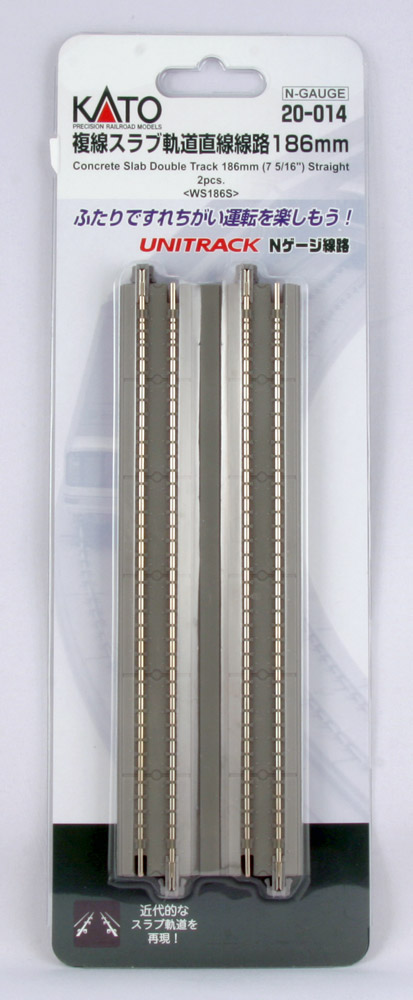

20-014 | 186mm (7 5/16") Concrete Slab Double Track Straight [2 pcs] | $13.00 |
 |

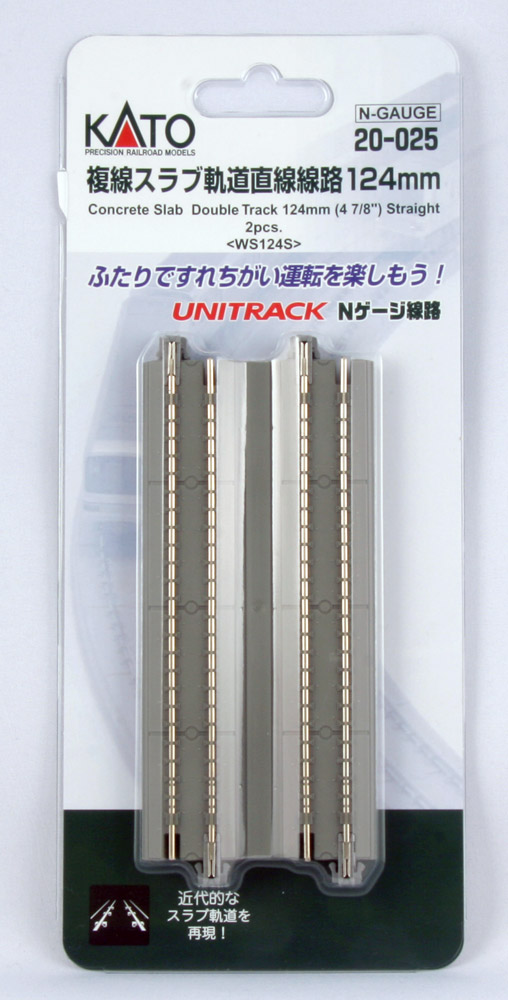

20-025 | 124mm (4 7/8") Concrete Slab Double Track Straight [2 pcs] | $12.00 |
 |

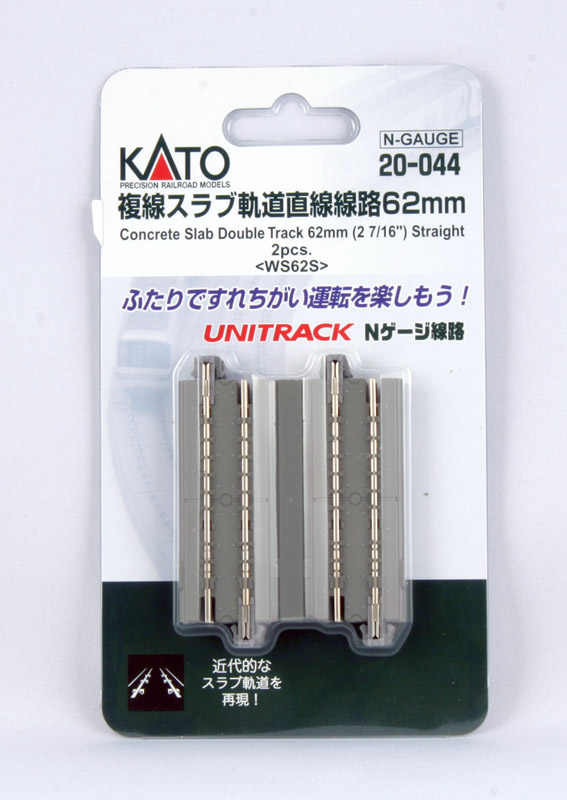

20-044 | 62mm (2 7/16") Concrete Slab Double Track Straight [2 pcs] | $11.00 |
 |

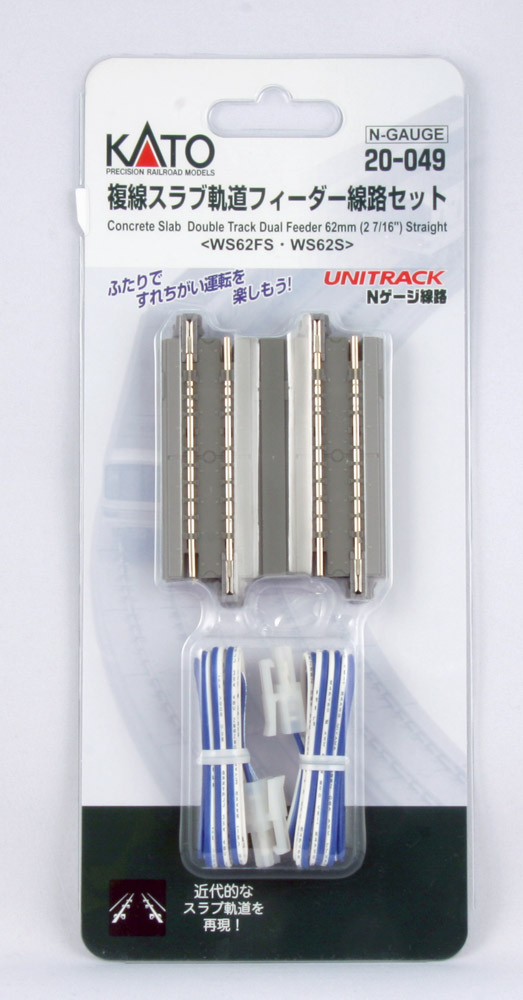

20-049 | 62mm (2 7/16") Concrete Slab Double Track Feeder [1 pcs] - Includes two track power leads and regular 2 7/16" straight track piece |
$17.00 |
 |

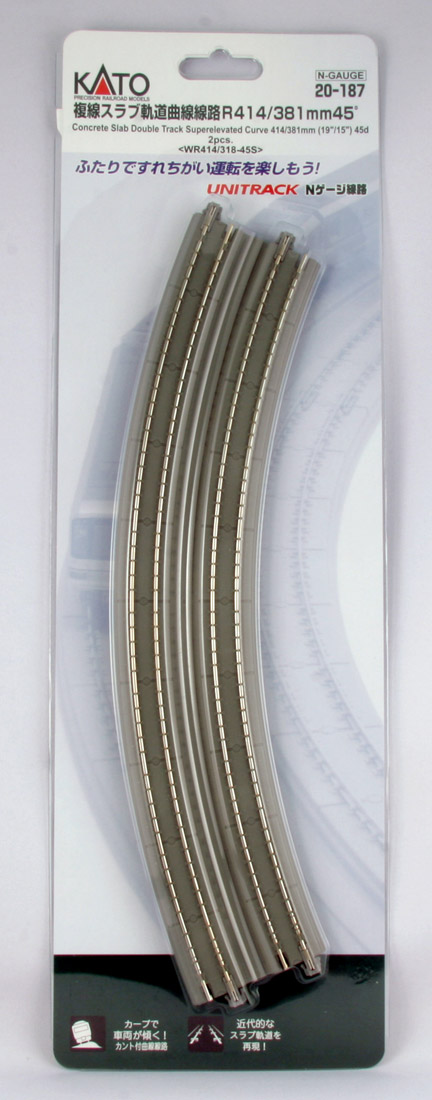

20-187 | 414mm/381mm Radius 45� (16 3/8" - 15") CS Double Track Superelevated Curve Track [2 pcs] | $15.00 |
 |

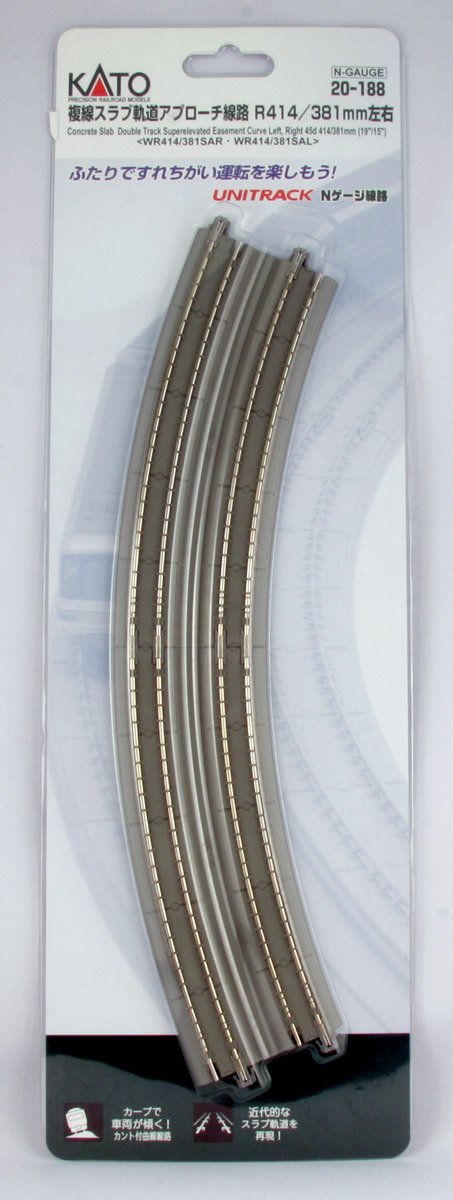

20-188 | 414mm/381mm Radius 22.5� (16 3/8" - 15") CS Double Track Easement Curve Track Right and Left | $13.50 |
